Enabling quick access to functions with a toolbar

To use the Toolbar API, follow the steps below.

  1. Link the AVKON libraries (avkon.lib, eikcoctl.lib) to the project file of the application.
  2. Define the toolbar in the application resources. Set it as application or view specific.
  3. Provide a class that implements the toolbar observer (MAknToolbarObserver) interface. Set the class as the observer of the toolbar (CAknToolbar) created in the previous step.
  4. If the toolbar items were not defined in the resources, add them dynamically in the application code.
  5. In the case of a floating toolbar, set the toolbar visible. (The framework sets the fixed toolbar automatically visible when activating the application/view.)
  6. Handle toolbar events using the observer interface methods.

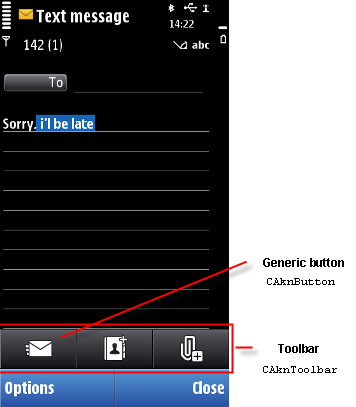

Figure 1. Fixed toolbar with implementation classes

Implementing a toolbar

To use a toolbar in your application, implement the following use cases:

The following use cases are optional, allowing you to set additional properties for your toolbar:

Implementing a toolbar extension (optional)

To use a toolbar extension in your application, implement the following use cases:

The following use cases are optional, allowing you to set additional properties for your toolbar extension:

Main implementation files

The main implementation files for the Toolbar API are:

  • akntoolbar.h for creating the toolbar and setting its properties

  • akntoolbarobserver.h for handling toolbar events

  • akntoolbarextension.h for creating the toolbar extension and setting its properties
