Orientation sensor channel
The orientation sensor channel indicates the orientation of the Symbian device, for example, display up or display down.
The following table provides information about the orientation sensor channel:
| Header | sensrvorientationsensor.h |
| Data type | State |
| Channel type id | KSensrvChannelTypeIdOrientationData |
| Data class | TSensrvOrientationData |
| Data units | Enumeration |

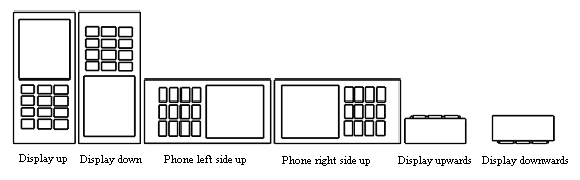

The orientation of a Symbian device is illustrated with six basic
orientations as shown in the following figure. In display up and display down
orientation the gravitation is along the y-axis. In phone left side up and
phone right side up orientation the gravitation is along the x-axis. In display
upwards and display downwards orientation the gravitation is along the z-axis.
