Example IETF Profile Agent Plug-in

Source code

Here is the source for the IETF Profile Agent plug-in:

sipietfprofileagent.h

// sipietfprofileagent.h

#ifndef CSIPIETFPROFILEAGENT_H
#define CSIPIETFPROFILEAGENT_H

//  INCLUDES
#include <e32base.h>
#include "sipprofileagent.h"
#include "sipprofileagentobserver.h"
#include "sipprofilefsmuser.h"
#include "sipobserver.h"
#include "siphttpdigestchallengeobserver2.h"


//FORWARD DECLARATIONS
class CSIP;
class CSIPHttpDigest;
class TSIPProfileTypeInfo;
class CSIPIetfConnectionContext;
class CSIPPrflInitState;
class CSIPPrflResolvingProxiesState;
class CSIPPrflRegisterRequestedState;
class CSIPPrflRegistrationInProgressState;
class CSIPPrflRegisteredState;
class CSIPPrflDeregisterRequestedState;
class CSIPPrflDeregistrationInProgressState;
class CSIPPrflRegisterDelayRequestedState;
class CSIPIetfProfileContext;
class CSIPProfileQueueHandling;

// CLASS DECLARATION
/**
*  Registers profiles and maintains
*  profile registrations as per RFC3261.
*
*  @lib n/a
*/
class CSIPIetfProfileAgent:
    public CSIPProfileAgent,
    public MSIPProfileAgentObserver,
    public MSIPProfileFSMUser,
    public MSIPObserver,
    public MSIPHttpDigestChallengeObserver2
    {
    public: // Constructors and destructor

        /**
        * Two-phased constructor.
        * @param aInitParams parameters passed in the construction
        */
        static CSIPIetfProfileAgent* NewL(TAny* aInitParams);

        /**
        * Destructor.
        */
        virtual ~CSIPIetfProfileAgent();

    public: // From CSIPProfileAgent

        const TSIPProfileTypeInfo& Type() const;

        CSIPConcreteProfile* CreateL();

        void RegisterL(
            CSIPConcreteProfile& aSIPConcreteProfile);

        void UpdateL(
            CSIPConcreteProfile& aNewProfile,
            CSIPConcreteProfile& aOldProfile);

        void DeregisterL(
            CSIPConcreteProfile& aSIPConcreteProfile);

        TInt GetProfileState(
            CSIPConcreteProfile::TStatus& aState,
            CSIPConcreteProfile& aProfile) const;

        TBool IsIdle();

        TBool RegisterPending(CSIPConcreteProfile& aSIPProfile) const;

        TInt TerminateHandling(CSIPConcreteProfile& aProfile);

        TInt Extension(TInt aOperationCode, TAny* aParams);

    public: // From MSIPProfileAgentObserver

        void SIPProfileStatusEvent(
            CSIPConcreteProfile& aProfile,
            TUint32 aContextId);

        void SIPProfileErrorEvent(
            CSIPConcreteProfile& aProfile,
            TInt aError);

        TBool ProceedRegistration(CSIPConcreteProfile& aProfile);

        void GetFailedProfilesL(
            const TSIPProfileTypeInfo& aType,
            RPointerArray<CSIPConcreteProfile>& aFailedProfiles) const;


    public: // From MSIPProfileFSMUser

        void RegisterProfileL(
            CSIPConcreteProfile& aSIPConcreteProfile);

        void DeregisterProfileL(
            CSIPConcreteProfile& aSIPConcreteProfile);

        void RetryProfileRegistrationL(
            CSIPConcreteProfile& aSIPProfile );

        TBool AddProfileIntoQueue(
            CSIPConcreteProfile& aSIPConcreteProfile ) const;

        void RegisterProfileAfterQueueL(
            CSIPConcreteProfile& aSIPConcreteProfile );

        void DeregisterProfileAfterQueueL(
            CSIPConcreteProfile& aSIPConcreteProfile );

        void RetryProfileRegistrationAfterQueueL(
            CSIPConcreteProfile& aSIPConcreteProfile );

        TBool IsInQueue(
            CSIPConcreteProfile& aSIPProfile ) const;

        void SetInterimProfile( CSIPConcreteProfile*
                                            aSIPConcreteProfile );

    public: // From MSIPObserver

        void IncomingRequest(
            TUint32 aIapId,
            CSIPServerTransaction* aTransaction);

        void TimedOut(CSIPServerTransaction& aTransaction);

    public: // From MSIPHttpDigestChallengeObserver2

        void ChallengeReceived(const CSIPClientTransaction& aTransaction);

        void ChallengeReceived(const CSIPRefresh& aRefresh);


    private: // Constructors

        /**
        * C++ default constructor.
        */
        CSIPIetfProfileAgent(TSIPProfileAgentInitParams* aInitParams);

        /**
        * By default Symbian 2nd phase constructor is private.
        */
        void ConstructL();


    private: // New functions

        /**
        * Provides profile context
        * @param aProfile a profile
        * @return a profile context
        */
        CSIPIetfProfileContext& ProvideProfileContextL(CSIPConcreteProfile& aProfile);

        /**
        * Finds profile context
        * @param aSIPConcreteProfile a profile
        * @return profile context, the ownership is not transferred
        */
        CSIPIetfProfileContext* FindProfileContext(CSIPConcreteProfile& aSIPConcreteProfile) const;

        /**
        * Finds profile context
        * @param aProfileId identifier of the profile
        * @return profile context, the ownership is not transferred
        */
        CSIPIetfProfileContext* FindProfileContext(TUint32 aProfileId) const;

        /**
        * Finds connection context
        * @param aPriofile a profile
        * @return a connection context
        */
        CSIPIetfConnectionContext* FindConnectionContext(CSIPConcreteProfile& aProfile) const;

        /**
        * Destroys idle connection contexts
        */
        void CleanIdleConnectionContexts();

        TBool DeregisterToWaitingQueueL( CSIPIetfProfileContext* aContext );

        void HandleRegisterQueue( CSIPIetfProfileContext* aContext, TBool aReportError );

        void RegisterQueue( CSIPConcreteProfile& aProfile, TBool aReportError );

        TBool AllowedTakeFromQueue( CSIPConcreteProfile& aSIPConcreteProfile );


    private: //  Data

        CSIP*                                    iSIP;
        CSIPHttpDigest*                         iHttpDigest;
        MSIPProfileAgentObserver&                iSIPProfileAgentObserver;
        CDeltaTimer&                            iDeltaTimer;
        TSIPProfileTypeInfo                        iType;
        CSIPPrflInitState*                        iInit;
        CSIPPrflResolvingProxiesState*            iResolvingProxies;
        CSIPPrflRegisterRequestedState*            iRegRequested;
        CSIPPrflRegistrationInProgressState*    iRegInProgress;
        CSIPPrflRegisteredState*                iRegistered;
        CSIPPrflDeregisterRequestedState*        iDeregRequested;
        CSIPPrflDeregistrationInProgressState*    iDeregInProgress;
        CSIPPrflRegisterDelayRequestedState*    iRegDelayRequested;
        RPointerArray<CSIPIetfConnectionContext> iConnectionCtxArray;
        CSIPProfileQueueHandling*                 iProfileQueueHandling;


#ifdef CPPUNIT_TEST
        friend class CSIPIetfProfileAgentTest;
#endif
    };

#endif CSIPIETFPROFILEAGENT_H

sipietfprofilecontext.h

// sipietfprofilecontext.h

#ifndef SIPIETFPRROFILECONTEXT_H
#define SIPIETFPRROFILECONTEXT_H

//INCLUDES
#include "sipprofilecontextbase.h"
#include "sipietfconnectioncontext.h"

// FORWARD DECLARATIONS
class CSIPConcreteProfile;


// CLASS DECLARATION
/**
*  Class for maintaining the information related
*  to a particular IETF type profile. Class stores
*  related registration, sip connection and transactions.
*
*  @lib n/a.
*/
class CSIPIetfProfileContext : public CSIPProfileContextBase
    {
    public:

        /**
        * Two-phased constructor.
        * @param aSIP a handle to SIP server
        * @param aConnection a SIP connection
        * @param aInitState a init state
        * @param aProfile a profile
        */
        static CSIPIetfProfileContext* NewL(
            CSIP& aSIP,
            CSIPIetfConnectionContext& aConnection,
            MSIPProfileAgentObserver& aObserver,
            CSIPPrflStateBase& aInitState,
            CSIPConcreteProfile& aProfile,
            CDeltaTimer& aDeltaTimer);
        /**
        * Two-phased constructor.
        * @param aSIP a handle to SIP server
        * @param aConnection a SIP connection
        * @param aInitState a init state
        * @param aProfile a profile
        */
        static CSIPIetfProfileContext* NewLC(
            CSIP& aSIP,
            CSIPIetfConnectionContext& aConnection,
            MSIPProfileAgentObserver& aObserver,
            CSIPPrflStateBase& aInitState,
            CSIPConcreteProfile& aProfile,
            CDeltaTimer& aDeltaTimer);
        /**
        * Destructor.
        */
        ~CSIPIetfProfileContext();


    public: // From MSIPProfileContext

        void DestroyRegistration();

        void CreateRegistrationL();

        CSIPMessageElements* CreateMsgElementsLC();

        CSIPMessageElements* CreateDeRegisterElementsL();

        void UpdateContactHeaderParamsL(CSIPConcreteProfile& aNewProfile);

        void SetRegisteredAORsL();

        void ResolveProxyL();

        void CancelProxyResolving();


    public: // New functions

        /**
        * Deregisters SIP profile according to the profile type.
        * @param aSIPConcreteProfile sip profile to deregister
        */
        void DeregisterL();

         /**
        * Updates SIP profile. This can lead to profile de-registration
        * and registration. Function leaves with KErrArgument if profiles
        * are the same.
        * @param aNewProfile sip profile to update
        */
        void UpdateL(CSIPConcreteProfile& aNewProfile);

        /**
        * A SIP response creating a registration binding or an error response
        * that is related to an refreshed registration binding
        * has been received from the network.
        * @param aTransaction contains response elements.
        * The ownership is transferred.
        * @param aRegistration associated registration
        * @param aHandled, returned ETrue if response handled
        */
        void IncomingResponse(CSIPClientTransaction& aTransaction,
                              CSIPRegistrationBinding& aRegistration,
                              TBool& aHandled);

        TBool RetryTimerInUse();

        TUint DelayTime();
        TBool RetryAfterTimer();

    private: // Constructor

        CSIPIetfProfileContext(
            CSIP& aSIP,
            CSIPIetfConnectionContext& iConnection,
            MSIPProfileAgentObserver& aObserver,
            CSIPPrflStateBase& aInitState,
            CSIPConcreteProfile& aProfile,
            CDeltaTimer& aDeltaTimer);

        void ConstructL();


    private: // From CSIPProfileContextBase

        void ConnectionStateChangedImpl(CSIPConnection::TState aState);

        TBool RetryRegister(CSIPClientTransaction* aTransaction,
                            TInt aError);

        TBool ShouldRetryRegistration(TInt aError);

        void InitializeRetryTimerValue();


    private: // New functions

        CSIPMessageElements* CreateMsgElementsForUpdateLC(
            CSIPConcreteProfile& aProfile);
        TUint RandomPercent();
        TBool IsAddressSIPSURIL(const TDesC8& aValue) const;
        HBufC8* SetAddressToSIPSURIL(const TDesC8& aValue);
        TBool SetTlsToSecurityClientL();
        TBool IsDynamicNumericIPAddress( const TDesC8& aValue );
        TBool IsConfiguredOutboundProxySIPURIL( const TDesC8& aValue );
        RStringF TransportProtocol(const CUri8& aUri) const;

    private: // Data

        CSIPIetfConnectionContext&    iConnectionContext;
        RStringF iStrNATTraversalRequired;
        TInt64                         iRandomSeed;
        TUint                          iRetryTime;
        TUint                        iRetryCounter;
        TUint                        iRetryCounterSum;
        TBool                        iRetryTimerUse;

    private: // For testing purposes

        friend class CSIPIetfProfileContextTest;
        friend class CSIPIetfConnectionContextTest;
        friend class CSIPIetfProfileAgentTest;
    };

#endif

sipietfconnectioncontext.h

// sipietfconnectioncontext.h

#ifndef    CSIPIETFCONNECTIONCONTEXT_H
#define CSIPIETFCONNECTIONCONTEXT_H

//  INCLUDES
#include <e32base.h>
#include <bamdesca.h>
#include "sipconnectionobserver.h"
#include "MSIPProxyResolverObserver.h"

// FORWARD DECLARATIONS
class CSIPIetfProfileContext;
class CSIPRegistrationBinding;
class CSIPClientTransaction;
class CSIPDialogAssocBase;
class CSIPProxyResolver;
class CSIPHttpDigest;

// CLASS DECLARATION

/**
* Class maintains associations between the SIP connection
* and related SIP profiles.
*
*/
class CSIPIetfConnectionContext: public CBase, public MSIPConnectionObserver,
    public MSIPProxyResolverObserver
    {
    public: // Constructors and destructor

        /**
        * Two-phased constructor.
        */
        static CSIPIetfConnectionContext* NewL();

        /**
        * Two-phased constructor.
        */
        static CSIPIetfConnectionContext* NewLC();

        /**
        * Destructor.
        */
        ~CSIPIetfConnectionContext();

    public://new functions

        /**
        * Gets connection, the ownership is not transferred
        * @return connection
        */
        CSIPConnection* Connection();

        /**
        * Add profile context, ownership transferred
        * @param aContext, profile context using the connection
        */
        void AddProfileContextL(CSIPIetfProfileContext* aContext);

        /**
        * Find context of the profile, the ownership is not transferred
        * @param aProfileId, profile stored in context
        */
        CSIPIetfProfileContext* FindContext(TUint32 aProfileId);

        /**
        * Delete idle contexts
        */
        void CleanIdleContexts();

        /**
        * Set connection for the context
        * @param aConnection, connection of the context
        */
        void SetConnection(CSIPConnection* aConnection);

        /**
        * Checks if connection idle
        * @return ETrue, if contains no profile contexts, otherwise EFalse
        */
        TBool IsIdle() const;

        /**
        * starts resolving proxy
        */
        void ResolveL();

        /**
        * Cleans dynamic proxy addresses and cancels any
        * pending requests
        */
        void CleanProxyResolving();

        /**
        * Checks if registration/deregistration should be put
        * in queue to wait, because there is registration/deregistration
        * with same registrar address pending.
        * @return ETrue if should be put into queue to wait.
        */
        TBool AddIntoQueue( const TDesC8& aValue );

        /**
        * Sets HTTP Digest credentials from the profile
        * if the given transaction was found from one
        * of the profiles related to this connection.
        * @return ETrue if the transaction was found and credentials were set.
        */
        TBool SetCredentials(
            const CSIPClientTransaction& aTransaction,
            CSIPHttpDigest& aDigest);

        /**
        * Sets HTTP Digest credentials from the profile
        * if the given refresh was found from one
        * of the profiles related to this connection.
        * @return ETrue if the refresh was found and credentials were set.
        */
        TBool SetCredentials(
            const CSIPRefresh& aRefresh,
            CSIPHttpDigest& aDigest);

    public://functions from base class

        /**
        * A SIP request outside a dialog has been received from the network.
        * @param aTransaction SIP server transaction
        * The ownership is transferred.
        */
        void IncomingRequest (CSIPServerTransaction*
                                      aTransaction);

        /**
        * A SIP request within a dialog has been received from the network.
        * The client must resolve the actual dialog association to which
        * this request belongs.
        * @param aTransaction SIP server transaction
        * The ownership is transferred.
        * @param aDialog the dialog  that
        *        this transaction belongs to.
         */
        void IncomingRequest (
                    CSIPServerTransaction* aTransaction,
                    CSIPDialog& aDialog);

        /**
        * A SIP response received from the network.
        * @param aTransaction contains response elements.
        * The ownership is transferred.
        */
        void IncomingResponse (CSIPClientTransaction&
                                       aTransaction);

        /**
        * A SIP response that is within a dialog association or creates
        * a dialog association.
        * @param aTransaction contains response elements.
        * The ownership is transferred.
        * @param aDialogAssoc a dialog association
        */
        void IncomingResponse (
                    CSIPClientTransaction& aTransaction,
                    CSIPDialogAssocBase& aDialogAssoc);

        /**
        * A SIP response creating a registration binding or an error response
        * that is related to an refreshed registration binding
        * has been received from the network.
        * @param aTransaction contains response elements.
        * The ownership is transferred.
        * @param aSIPRegistration associated registration
        */
        void IncomingResponse (
                    CSIPClientTransaction& aTransaction,
                    CSIPRegistrationBinding& aRegistration);

        /**
        * A SIP response related a registration binding or an error response
        * that is related to registration binding has been received
        * from the network.
        *
        * @param aTransaction contains response elements.
        * @param aRegistration registration this transaction belongs to
        */
        void IncomingResponse (
                    CSIPClientTransaction& aTransaction,
                    CSIPInviteDialogAssoc* aDialogAssoc);

        /**
        * An asynchronous error has occurred related to a periodical refresh
        * that relates to a registration.
        * @param aError error code
        * @param aSIPRegistration associated registration
        */
        void ErrorOccured (
                    TInt aError,
                    CSIPRegistrationBinding& aRegistration);
        /**
        * An asynchronous error has occurred in the stack related
        * to the request indicated by the given transaction.
        * @param aError error code
        * @param aTransaction the failed transaction
        * @param aRegistration the failed registration
        */
        void ErrorOccured (
                    TInt aError,
                    CSIPClientTransaction& aTransaction,
                    CSIPRegistrationBinding& aRegistration);

        /**
        * An asynchronous error has occurred in the stack related to the
        * request indicated by the given transaction.
        * @param aError error code
        * @param aTransaction failed transaction
        */
        void ErrorOccured (
                    TInt aError,
                    CSIPTransactionBase& aTransaction);

        /**
        * An asynchronous error has occured related to a request within
        * an existing dialog.
        * @param aError error code
        * @param aTransaction the failed transaction
        * @param aDialogAssoc the failed dialog association
        */
        void ErrorOccured (
                    TInt aError,
                    CSIPTransactionBase& aTransaction,
                    CSIPDialogAssocBase& aDialogAssoc);

        /**
        * An asynchronous error has occured related to a refresh
        * @param aError error code
        * @param aSIPRefresh original refresh object
        */
        void ErrorOccured (
                    TInt aError,
                    CSIPRefresh& aRefresh);

        /**
        * An asynchronous error has occured related to a periodical refresh
        * that belongs to SIP dialog association.
        * @param aError error code
        * @param aDialogAssoc SIP dialog association
        */
        void ErrorOccured (
                    TInt aError,
                    CSIPDialogAssocBase& aDialogAssoc);

        /**
        * Connection state has changed.
        * @param aState indicates the current connection state
        */
        void ConnectionStateChanged (
                    CSIPConnection::TState aState);

        /**
        * SIP stack has completed UAC core INVITE transaction 64*T1 seconds
        * after the reception of the first 2xx response. No more 2xx responses
        * can be received to the issued single INVITE.
        *
        * @param aTransaction a complete UAC core INVITE transaction
        */
        void InviteCompleted (CSIPClientTransaction& aTransaction);

        /**
        * Invite was cancelled with the CANCEL
        * @param aTransaction a cancelled INVITE UAS transaction
        */
        void InviteCanceled (CSIPServerTransaction& aTransaction);


        /**
        * An asynchronous proxy resolving request has been completed.
        * @param aRequestId the id of the resolving request.
        * @param aProxies a list of proxy addresses.
        *        The ownership is transferred.
        */
        void ProxyResolvingRequestComplete (TUint aRequestId,
                                                MDesC8Array* aProxies);

        /**
        * An asynchronous proxy resolving request has failed.
        * @param aRequestId the id of the resolving request.
        * @param aError a reason why the request failed.
        */
        void ProxyResolvingRequestFailed (TUint aRequestId, TInt aError);

        /**
        * starts resolving proxy
        */
        void ResolveProxyL();

    private:
        /**
        * Default constructor.
        */
        CSIPIetfConnectionContext();

        /**
        * By default Symbian 2nd phase constructor is private.
        */
        void ConstructL();


    private:
        CSIPConnection* iConnection;

        CSIPProxyResolver* iProxyResolver;
        TUint iProxyResolveRequestId;

        RPointerArray<CSIPIetfProfileContext> iContexts;

        friend class CSIPIetfProfileContextTest;
        friend class CSIPIetfConnectionContextTest;
    };

#endif

sipietfprofileagent.cpp

//sipietfprofileagent.cpp

// INCLUDE FILES
#include    "sipietfprofileagent.h"
#include    "sipconcreteprofile.h"
#include    "sipprofileagentobserver.h"
#include    "sipconnection.h"
#include    "sipprflinitstate.h"
#include    "sipprflresolvingproxiesstate.h"
#include    "sipprflregisterrequestedstate.h"
#include    "sipprflregisterdelayrequestedstate.h"
#include    "sipprflregistrationinprogressstate.h"
#include    "sipprflregisteredstate.h"
#include    "sipprflderegistrationinprogressstate.h"
#include    "sipprflderegisterrequestedstate.h"
#include    "sipprflstatebase.h"
#include    "sipietfprofilecontext.h"
#include    "sipgendefs.h"
#include    "SipProfileLog.h"
#include    "sipstrings.h"
#include    "sipstrconsts.h"
#include    "sipprofilequeuehandling.h"
#include    "sip.h"
#include    "siphttpdigest.h"
#include    "sipservertransaction.h"
#include    <sipprofile.h>

_LIT8(KSIPIETFProfileType, "IETF");

// ============================ MEMBER FUNCTIONS ===============================

// -----------------------------------------------------------------------------
// CSIPIetfProfileAgent::NewL
// Two-phased constructor.
// -----------------------------------------------------------------------------
//
CSIPIetfProfileAgent* CSIPIetfProfileAgent::NewL(TAny* aInitParams)
    {
    CSIPIetfProfileAgent* self = new (ELeave) CSIPIetfProfileAgent(
        static_cast<TSIPProfileAgentInitParams*>(aInitParams));
    CleanupStack::PushL(self);
    self->ConstructL();
    CleanupStack::Pop(self);
    return self;
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileAgent::CSIPIetfProfileAgent
// C++ default constructor can NOT contain any code, that
// might leave.
// -----------------------------------------------------------------------------
//
CSIPIetfProfileAgent::CSIPIetfProfileAgent(TSIPProfileAgentInitParams* aInitParams)
    : iSIPProfileAgentObserver(aInitParams->iSIPProfileAgentObserver),
      iDeltaTimer(aInitParams->iDeltaTimer)
    {
    iType.iSIPProfileClass = TSIPProfileTypeInfo::EInternet;
    iType.iSIPProfileName = KSIPIetfType();
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileAgent::ConstructL
// Symbian 2nd phase constructor can leave.
// -----------------------------------------------------------------------------
//
void CSIPIetfProfileAgent::ConstructL()
    {
    SIPStrings::OpenL();
    iInit = CSIPPrflInitState::NewL(*this);
    iResolvingProxies = CSIPPrflResolvingProxiesState::NewL(*this);
    iRegRequested = CSIPPrflRegisterRequestedState::NewL(*this);
    iRegInProgress = CSIPPrflRegistrationInProgressState::NewL(*this);
    iRegistered = CSIPPrflRegisteredState::NewL(*this);
    iDeregRequested = CSIPPrflDeregisterRequestedState::NewL(*this);
    iDeregInProgress = CSIPPrflDeregistrationInProgressState::NewL(*this);
    iRegDelayRequested = CSIPPrflRegisterDelayRequestedState::NewL(*this);
    iInit->LinkStates(*iResolvingProxies, *iRegRequested, *iRegInProgress);
    iResolvingProxies->LinkStates(*iInit, *iRegRequested, *iRegInProgress);
    iRegRequested->LinkStates(*iInit, *iResolvingProxies, *iRegInProgress);
    iRegInProgress->LinkStates(*iRegRequested, *iInit, *iRegistered,
                               *iRegDelayRequested);
    iRegistered->LinkStates(*iDeregRequested, *iDeregInProgress,
                             *iInit, *iRegRequested,*iRegDelayRequested);
    iDeregRequested->LinkStates(*iInit, *iRegistered, *iDeregInProgress);
    iDeregInProgress->LinkStates(*iInit);
    iRegDelayRequested->LinkStates(*iInit);
    iProfileQueueHandling = CSIPProfileQueueHandling::NewL(*this);

    iSIP = CSIP::NewL(TUid::Null(),*this);
    iHttpDigest = CSIPHttpDigest::NewL(*iSIP,*this);
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileAgent::~CSIPIetfProfileAgent
// Symbian 2nd phase constructor can leave.
// -----------------------------------------------------------------------------
//
CSIPIetfProfileAgent::~CSIPIetfProfileAgent()
    {
    delete iInit;
    delete iResolvingProxies;
    delete iRegRequested;
    delete iRegistered;
    delete iRegInProgress;
    delete iDeregRequested;
    delete iDeregInProgress;
    delete iRegDelayRequested;
    delete iProfileQueueHandling;
    iConnectionCtxArray.ResetAndDestroy();
    iConnectionCtxArray.Close();
    SIPStrings::Close();
    delete iHttpDigest;
    delete iSIP;
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileAgent::SIPProfileAgentType
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
const TSIPProfileTypeInfo& CSIPIetfProfileAgent::Type() const
    {
    return iType;
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileAgent::CreateL
// -----------------------------------------------------------------------------
//
CSIPConcreteProfile* CSIPIetfProfileAgent::CreateL()
    {
    TSIPProfileTypeInfo type;
    type.iSIPProfileClass = TSIPProfileTypeInfo::EInternet;
    type.iSIPProfileName = KSIPIETFProfileType;

    CSIPConcreteProfile* profile = CSIPConcreteProfile::NewL();
    profile->SetProfileType(type);
    return profile;
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileAgent::RegisterL
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
void CSIPIetfProfileAgent::RegisterL(
    CSIPConcreteProfile& aSIPConcreteProfile)
    {
    __ASSERT_ALWAYS (aSIPConcreteProfile.AOR().Length() > 0,
        User::Leave(KErrArgument));
    __ASSERT_ALWAYS (aSIPConcreteProfile.Server(KSIPRegistrar).Length(),
        User::Leave(KErrArgument));

    PROFILE_DEBUG3("CSIPIetfProfileAgent::RegisterL", aSIPConcreteProfile.Id())

    if (!iProfileQueueHandling->AddRegisterToQueueL( aSIPConcreteProfile,
                                                     EFalse ))
        {
        CSIPIetfProfileContext* context = FindProfileContext(aSIPConcreteProfile);
        if (!context)
            {
            context = &ProvideProfileContextL(aSIPConcreteProfile);
            }
        context->RegisterL();
        }
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileAgent::UpdateL
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
void CSIPIetfProfileAgent::UpdateL(
    CSIPConcreteProfile& aNewProfile,
    CSIPConcreteProfile& aOldProfile)
    {
    PROFILE_DEBUG3("CSIPIetfProfileAgent::UpdateL", aOldProfile.Id())
    iProfileQueueHandling->Cleanup(aOldProfile,&aNewProfile);
    CSIPIetfProfileContext* context = FindProfileContext(aOldProfile);
    if (!context)
        {
        User::Leave(KErrNotFound);
        }
    context->UpdateL(aNewProfile);
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileAgent::DeregisterL
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//

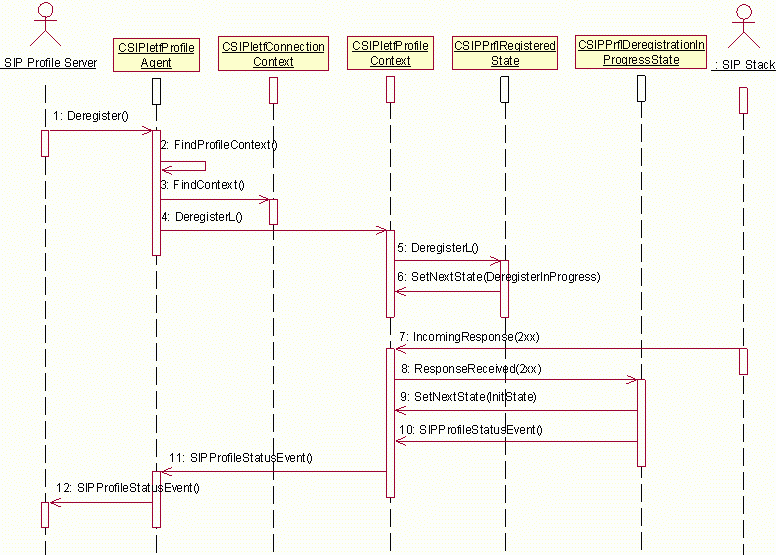

void CSIPIetfProfileAgent::DeregisterL(
    CSIPConcreteProfile& aSIPConcreteProfile)
    {
    PROFILE_DEBUG3("CSIPIetfProfileAgent::DeregisterL", aSIPConcreteProfile.Id())
    CSIPIetfProfileContext* context = FindProfileContext(aSIPConcreteProfile);
    if ( context )
        {
        if ( !DeregisterToWaitingQueueL( context ))
            {
            context->DeregisterL();
            }
        }
    else
        {
        iProfileQueueHandling->RemoveProfileFromRegQueueL(aSIPConcreteProfile);
        }
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileAgent::GetProfileState
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
TInt CSIPIetfProfileAgent::GetProfileState(
    CSIPConcreteProfile::TStatus& aState,
    CSIPConcreteProfile& aProfile) const
    {
    CSIPIetfProfileContext* context = FindProfileContext(aProfile);
    if (context)
        {
        aState = context->CurrentMappedState();
        return KErrNone;
        }
    else
        {
        return KErrNotFound;
        }
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileAgent::IsIdle
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
TBool CSIPIetfProfileAgent::IsIdle()
    {
    CleanIdleConnectionContexts();
    return (iConnectionCtxArray.Count()==0);
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileAgent::RegisterPending
// -----------------------------------------------------------------------------
//
TBool CSIPIetfProfileAgent::RegisterPending(
    CSIPConcreteProfile& aSIPProfile) const
    {
    PROFILE_DEBUG3("CSIPIetfProfileAgent::IsRegisterPending", aSIPProfile.Id())

    CSIPIetfProfileContext* context = FindProfileContext(aSIPProfile);
    if (context)
        {
        return context->IsRegisterPending();
        }
    return EFalse;
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileAgent::TerminateHandling
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
TInt CSIPIetfProfileAgent::TerminateHandling(CSIPConcreteProfile& aProfile)
    {
    CSIPIetfProfileContext* context = FindProfileContext(aProfile);
    if (context)
        {
        PROFILE_DEBUG3("CSIPIetfProfileAgent::TerminateHandling", aProfile.Id())
        context->SetNextState(*iInit);
        context->TerminateHandling();
        return KErrNone;
        }
    else
        {
        return KErrNotFound;
        }
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileAgent::Extension
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
TInt CSIPIetfProfileAgent::Extension(TInt /*aOperationCode*/, TAny* /*aParams*/)
    {
    return KErrNotSupported;
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileAgent::SIPProfileStatusEvent
// -----------------------------------------------------------------------------
//
void CSIPIetfProfileAgent::SIPProfileStatusEvent(
    CSIPConcreteProfile& aProfile,
    TUint32 aContextId)
    {
    PROFILE_DEBUG4("CSIPIetfProfileAgent::SIPProfileStatusEvent",\
        aProfile.Id(), aContextId)

    CSIPIetfProfileContext* context = FindProfileContext( aProfile.Id() );

    HandleRegisterQueue( context, ETrue );

    iSIPProfileAgentObserver.SIPProfileStatusEvent( aProfile, aContextId );
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileAgent::SIPProfileErrorEvent
// -----------------------------------------------------------------------------
//
void CSIPIetfProfileAgent::SIPProfileErrorEvent(
    CSIPConcreteProfile& aProfile,
    TInt aError)
    {
    PROFILE_DEBUG4("CSIPIetfProfileAgent::ErrorEvent", aProfile.Id(), aError)
    CSIPIetfProfileContext* context = FindProfileContext(aProfile.Id());

    if (context && context->IgnoreErrorEvent())
        {
        PROFILE_DEBUG4("CSIPIetfProfileAgent::Error ignored",\
                       aProfile.Id(), aError)
        }
    else
        {
        PROFILE_DEBUG4("CSIPIetfProfileAgent::Error sent",
                       aProfile.Id(), aError)

        RegisterQueue( aProfile, EFalse );

        iSIPProfileAgentObserver.SIPProfileErrorEvent(aProfile,aError);
        }
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileAgent::ProceedRegistration
// -----------------------------------------------------------------------------
//
TBool CSIPIetfProfileAgent::ProceedRegistration(
    CSIPConcreteProfile& aProfile)
    {
    PROFILE_DEBUG3("CSIPIetfProfileAgent::ProceedRegistration", aProfile.Id())
    return iSIPProfileAgentObserver.ProceedRegistration(aProfile);
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileAgent::GetFailedProfilesL
// -----------------------------------------------------------------------------
//
void CSIPIetfProfileAgent::GetFailedProfilesL(
    const TSIPProfileTypeInfo& /*aType*/,
    RPointerArray<CSIPConcreteProfile>& /*aFailedProfiles*/) const
    {
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileAgent::RegisterProfileL
// From MSIPProfileFSMUser
// -----------------------------------------------------------------------------
//
void CSIPIetfProfileAgent::RegisterProfileL(
    CSIPConcreteProfile& aSIPProfile)
    {
    RegisterL(aSIPProfile);
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileAgent::DeregisterProfileL
// From MSIPProfileFSMUser
// -----------------------------------------------------------------------------
//
void CSIPIetfProfileAgent::DeregisterProfileL(
    CSIPConcreteProfile& aSIPProfile)
    {
    DeregisterL(aSIPProfile);
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileAgent::RetryProfileRegistrationL
// From MSIPProfileFSMUser
// -----------------------------------------------------------------------------
//
void CSIPIetfProfileAgent::RetryProfileRegistrationL(
    CSIPConcreteProfile& aSIPProfile)
    {
    PROFILE_DEBUG3("CSIPIetfProfileAgent::RetryProfileRegistrationL",
                   aSIPProfile.Id())

    if (!iProfileQueueHandling->AddRegisterToQueueL(aSIPProfile, ETrue))
        {
        CSIPIetfProfileContext* context = FindProfileContext(aSIPProfile);
        if (!context)
            {
            User::Leave(KErrNotFound);
            }
        context->RetryRegistration();
        }
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileAgent::AddProfileIntoQueue
// From MSIPProfileFSMUser
// -----------------------------------------------------------------------------
//
TBool CSIPIetfProfileAgent::AddProfileIntoQueue(
    CSIPConcreteProfile& aSIPProfile) const
    {
    PROFILE_DEBUG3("CSIPIetfProfileAgent::AddProfileIntoQueue",
                   aSIPProfile.Id())

    TBool found = EFalse;
    for (TInt i=0; i < iConnectionCtxArray.Count() && !found; i++)
        {
        found = iConnectionCtxArray[i]->AddIntoQueue(
            aSIPProfile.Server(KSIPRegistrar));
        }
    return found;
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileAgent::RegisterProfileAfterQueueL
// From MSIPProfileFSMUser
// -----------------------------------------------------------------------------
//
void CSIPIetfProfileAgent::RegisterProfileAfterQueueL(
    CSIPConcreteProfile& aSIPProfile)
    {
    PROFILE_DEBUG3("CSIPIetfProfileAgent::RegisterProfileAfterQueueL",
                   aSIPProfile.Id())

    CSIPIetfProfileContext* context = FindProfileContext(aSIPProfile);
    if (!context)
        {
        context = &ProvideProfileContextL(aSIPProfile);
        }
    context->RegisterL();
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileAgent::DeregisterProfileAfterQueueL
// From MSIPProfileFSMUser
// -----------------------------------------------------------------------------
//
void CSIPIetfProfileAgent::DeregisterProfileAfterQueueL(
    CSIPConcreteProfile& aSIPProfile)
    {
    PROFILE_DEBUG3("CSIPIetfProfileAgent::DeregisterProfileAfterQueueL",
                   aSIPProfile.Id())

    CSIPIetfProfileContext* context = FindProfileContext(aSIPProfile);
    __ASSERT_ALWAYS(context != NULL, User::Leave(KErrNotFound));
    context->DeregisterL();
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileAgent::RetryProfileRegistrationAfterQueueL
// From MSIPProfileFSMUser
// -----------------------------------------------------------------------------
//
void CSIPIetfProfileAgent::RetryProfileRegistrationAfterQueueL(
    CSIPConcreteProfile& aSIPProfile)
    {
    PROFILE_DEBUG3("CSIPIetfProfileAgent::RetryProfileRegistrationAfterQueueL",
                   aSIPProfile.Id())

    CSIPIetfProfileContext* context = FindProfileContext(aSIPProfile);
    __ASSERT_ALWAYS(context != NULL, User::Leave(KErrNotFound));
    context->RetryRegistration();
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileAgent::IsInQueue
// From MSIPProfileFSMUser
// -----------------------------------------------------------------------------
//
TBool CSIPIetfProfileAgent::IsInQueue(
    CSIPConcreteProfile& aSIPProfile) const
    {
    PROFILE_DEBUG1("CSIPIetfProfileAgent::IsInQueue")
    PROFILE_DEBUG3("CSIPIetfProfileAgent::IsInQueue",
                   aSIPProfile.Id())
    return iProfileQueueHandling->IsInQueue(aSIPProfile);
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileAgent::SetInterimProfile
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
void CSIPIetfProfileAgent::SetInterimProfile( CSIPConcreteProfile* /*aSIPConcreteProfile*/ )
    {

    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileAgent::IncomingRequest
// From MSIPObserver
// -----------------------------------------------------------------------------
//
void CSIPIetfProfileAgent::IncomingRequest(
    TUint32 /*aIapId*/,
    CSIPServerTransaction* aTransaction)
    {
    // Should not be called, because CSIP is created with a NULL UID
    // Delete the transaction to prevent a memory leak
    delete aTransaction;
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileAgent::TimedOut
// From MSIPObserver
// -----------------------------------------------------------------------------
//
void CSIPIetfProfileAgent::TimedOut(CSIPServerTransaction& /*aTransaction*/)
    {
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileAgent::ChallengeReceived
// From MSIPHttpDigestChallengeObserver2
// -----------------------------------------------------------------------------
//
void CSIPIetfProfileAgent::ChallengeReceived(
    const CSIPClientTransaction& aTransaction)
    {
    TBool found = EFalse;
    for (TInt i=0; i < iConnectionCtxArray.Count() && !found; i++)
        {
        found =
            iConnectionCtxArray[i]->SetCredentials(aTransaction,*iHttpDigest);
        }
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileAgent::ChallengeReceived
// From MSIPHttpDigestChallengeObserver2
// -----------------------------------------------------------------------------
//
void CSIPIetfProfileAgent::ChallengeReceived(const CSIPRefresh& aRefresh)
    {
    TBool found = EFalse;
    for (TInt i=0; i < iConnectionCtxArray.Count() && !found; i++)
        {
        found = iConnectionCtxArray[i]->SetCredentials(aRefresh,*iHttpDigest);
        }
    }

// ----------------------------------------------------------------------------
// CSIPIetfProfileAgent::HandleRegisterQueue
// ----------------------------------------------------------------------------
//
void CSIPIetfProfileAgent::HandleRegisterQueue(
    CSIPIetfProfileContext* aContext,
    TBool aReportError )
    {
    PROFILE_DEBUG1("CSIPIetfProfileAgent::HandleRegisterQueue")

    if ( !aContext || !aContext->Profile() )
        {
        return;
        }

       RegisterQueue( *aContext->Profile(), aReportError );
    }

// ----------------------------------------------------------------------------
// CSIPIetfProfileAgent::RegisterQueue
// ----------------------------------------------------------------------------
//
void CSIPIetfProfileAgent::RegisterQueue(
    CSIPConcreteProfile& aProfile,
    TBool aReportError )
    {
    PROFILE_DEBUG3("CSIPIetfProfileAgent::RegisterQueue", aProfile.Id())

    TInt err( KErrNone );

    if ( AllowedTakeFromQueue( aProfile ) )
        {
        TRAP( err, iProfileQueueHandling->RegisterFromQueueL( aProfile ) );
        }

    if ( err && aReportError )
        {
        iSIPProfileAgentObserver.SIPProfileErrorEvent( aProfile, err );
        }
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileAgent::AllowedTakeFromQueue
// -----------------------------------------------------------------------------
//
TBool CSIPIetfProfileAgent::AllowedTakeFromQueue(
    CSIPConcreteProfile& aSIPConcreteProfile )
    {
    PROFILE_DEBUG3("CSIPIetfProfileAgent::AllowedTakeFromQueueL",
                   aSIPConcreteProfile.Id())

    return !AddProfileIntoQueue( aSIPConcreteProfile );
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileAgent::DeregisterToWaitingQueueL
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
TBool CSIPIetfProfileAgent::DeregisterToWaitingQueueL(
    CSIPIetfProfileContext* aContext )
    {
    PROFILE_DEBUG3("CSIPIetfProfileAgent::DeregisterToWaitingQueueL",
                   aContext->Profile()->Id())

    if (!aContext->AddDeregisterIntoQueue())
        {
        return EFalse;
        }
    return iProfileQueueHandling->AddDeregisterToQueueL( *aContext->Profile() );
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileAgent::FindProfileContext
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
CSIPIetfProfileContext* CSIPIetfProfileAgent::FindProfileContext(
    CSIPConcreteProfile& aSIPConcreteProfile) const
    {
    return FindProfileContext(aSIPConcreteProfile.Id());
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileAgent::FindProfileContext
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
CSIPIetfProfileContext* CSIPIetfProfileAgent::FindProfileContext(
    TUint32 aProfileId) const
    {
    for (TInt i=0; i < iConnectionCtxArray.Count(); i++)
        {
        CSIPIetfProfileContext *context =
            iConnectionCtxArray[i]->FindContext(aProfileId);
        if (context)
            {
            return context;
            }
        }
    return 0;
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileAgent::FindConnectionContext
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
CSIPIetfConnectionContext* CSIPIetfProfileAgent::FindConnectionContext(
    CSIPConcreteProfile& aProfile) const
    {
    CSIPIetfConnectionContext* context =0;
    TBool found = EFalse;
    for (TInt i=0; i < iConnectionCtxArray.Count() && !found; i++)
        {
        if (iConnectionCtxArray[i]->Connection()->IapId() == aProfile.IapId())
            {
            context = iConnectionCtxArray[i];
            found = ETrue;
            }
        }
    return context;
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileAgent::ProvideContextL
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
CSIPIetfProfileContext& CSIPIetfProfileAgent::ProvideProfileContextL(
    CSIPConcreteProfile& aProfile)
    {
    PROFILE_DEBUG3("CSIPIetfProfileAgent::ProvideProfileContextL",
                   aProfile.Id())

    CSIPIetfConnectionContext* connContext = FindConnectionContext(aProfile);
    if (!connContext)
        {
        //must create connection first
        connContext = CSIPIetfConnectionContext::NewLC();
        CSIPConnection* connection = CSIPConnection::NewL(
            *iSIP, aProfile.IapId(), *connContext);
        connContext->SetConnection(connection);
        User::LeaveIfError(iConnectionCtxArray.Append(connContext));
        CleanupStack::Pop();//connContext
        }
    CSIPIetfProfileContext* profilectx = CSIPIetfProfileContext::NewLC(
        *iSIP, *connContext, *this,
        *iInit, aProfile, iDeltaTimer);
    connContext->AddProfileContextL(profilectx);
    CleanupStack::Pop();//profilectx
    return *profilectx;
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileAgent::ProvideContextL
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
void CSIPIetfProfileAgent::CleanIdleConnectionContexts()
    {
    CSIPIetfConnectionContext* context = 0;

    for (TInt i=iConnectionCtxArray.Count()-1; i>= 0;)
        {
        iConnectionCtxArray[i]->CleanIdleContexts();
        if (iConnectionCtxArray[i]->IsIdle())
            {
            PROFILE_DEBUG1("CSIPIetfProfileAgent::CleanIdleConnectionContexts,\
                ConnectionContext removed")
            context = iConnectionCtxArray[i];
            iConnectionCtxArray.Remove(i);
            delete context;
            context = NULL;
            }
        i--;
        }

    iConnectionCtxArray.Compress();
    }

Sipietfprofilecontext.cpp

//Sipietfprofilecontext.cpp


// INCLUDE FILES
#include "sipietfprofilecontext.h"
#include "sipprflstatebase.h"
#include "sipconcreteprofile.h"
#include "sipietfprofileagent.h"
#include "sipregistrationbinding.h"
#include "sipclienttransaction.h"
#include "siprouteheader.h"
#include "sipgendefs.h"
#include "siprefresh.h"
#include "sipmessagebuilder.h"
#include "sipaddress.h"
#include "siptoheader.h"
#include "siprouteheader.h"
#include "sipmessageelements.h"
#include "sipresponseelements.h"
#include "sipsecurityclientheader.h"
#include "sipconnection.h"
#include "SipProfileLog.h"
#include "sipstrings.h"
#include "sipstrconsts.h"
#include "siperr.h"
#include "sipcodecerr.h"
#include "sipcontactheader.h"
#include <sipprofile.h>
#include <bamdesca.h>
#include <e32math.h>
#include <uri8.h>
#include <uriutils.h>

_LIT8(KNATTraversalRequiredDes, "nat_traversal_required");
_LIT8(KSIPTls, "tls");
_LIT8(KTransportUdpParam, "transport=udp");
_LIT8(KTransportTcpParam, "transport=tcp");

const TUint KMaxRandomLimit = 50;
const TUint KBaseTimeInSec    = 30;
const TUint KWaitTimeCoefficient = 2;
const TUint KRandomDivider        = 100;
const TUint KMaxRetryForOneAddress = 9;

// -----------------------------------------------------------------------------
// CSIPIetfProfileContext::NewLC
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
CSIPIetfProfileContext* CSIPIetfProfileContext::NewLC(
    CSIP& aSIP,
    CSIPIetfConnectionContext& aConnection,
    MSIPProfileAgentObserver& aObserver,
    CSIPPrflStateBase& aInitState,
    CSIPConcreteProfile& aProfile,
    CDeltaTimer& aDeltaTimer)
    {
    CSIPIetfProfileContext* self = new (ELeave) CSIPIetfProfileContext(aSIP,
        aConnection, aObserver, aInitState, aProfile, aDeltaTimer);
    CleanupStack::PushL(self);
    self->ConstructL();
    return self;
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileContext::NewL
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
CSIPIetfProfileContext* CSIPIetfProfileContext::NewL(
    CSIP& aSIP,
    CSIPIetfConnectionContext& aConnection,
    MSIPProfileAgentObserver& aObserver,
    CSIPPrflStateBase& aInitState,
    CSIPConcreteProfile& aProfile,
    CDeltaTimer& aDeltaTimer)
    {
    CSIPIetfProfileContext* self = CSIPIetfProfileContext::NewLC(
        aSIP, aConnection, aObserver, aInitState, aProfile, aDeltaTimer);
    CleanupStack::Pop();
    return self;
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileContext::CSIPIetfProfileContext
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
CSIPIetfProfileContext::CSIPIetfProfileContext(
    CSIP& aSIP,
    CSIPIetfConnectionContext& aConnection,
    MSIPProfileAgentObserver& aObserver,
    CSIPPrflStateBase& aInitState,
    CSIPConcreteProfile& aProfile,
    CDeltaTimer& aDeltaTimer)
    : CSIPProfileContextBase(aSIP,
                             *(aConnection.Connection()),
                             aObserver,
                             aInitState,
                             aProfile,
                             aDeltaTimer),
      iConnectionContext(aConnection),
      iRetryTimerUse(EFalse)
    {
    iRandomSeed = 0;
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileContext::ConstructL
// -----------------------------------------------------------------------------
//
void CSIPIetfProfileContext::ConstructL()
    {
    iStrNATTraversalRequired =
        SIPStrings::Pool().OpenFStringL(KNATTraversalRequiredDes);
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileContext::~CSIPIetfProfileContext
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
CSIPIetfProfileContext::~CSIPIetfProfileContext()
    {
    iStrNATTraversalRequired.Close();
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileContext::DestroyRegistration()
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
void CSIPIetfProfileContext::DestroyRegistration()
    {
    PROFILE_DEBUG3("SIPIetfProfileContext::DestroyRegistration", iProfileId)
    delete iRegistration;
    iRegistration = 0;
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileContext::CreateRegistrationL
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
void CSIPIetfProfileContext::CreateRegistrationL()
    {
    ASSERT(iProfile);
    RStringF transport(SIPStrings::StringF(SipStrConsts::EEmpty));
    CleanupClosePushL(transport);
    CSIPRouteHeader* proxy = 0;
    CUri8* remoteUri = 0;
    CSIPRefresh* refresh = CSIPRefresh::NewLC();
    CSIPToHeader* to = SIPMessageBuilder::CreateToLC(iProfile->AOR());
    to->SetParamL(iStrNATTraversalRequired);
    TUint pops = 2; //initial amount to pop from CleanupStack

    const TDesC8& proxyAddr = ProxyAddressL();
    HBufC8* sipsproxy = NULL;
    if(IsAddressSIPSURIL(iProfile->AOR()) && proxyAddr.Length() > 0)
        {
        if (!IsProxyResolvingEnabled())
            {
            __ASSERT_ALWAYS (IsAddressSIPSURIL(proxyAddr),
                        User::Leave(KErrArgument));
            }
        else
            {
            sipsproxy = SetAddressToSIPSURIL(proxyAddr);
            CleanupStack::PushL(sipsproxy);
            pops++;
            }
        __ASSERT_ALWAYS (!iProfile->IsSecurityNegotiationEnabled(),
                    User::Leave(KErrArgument));
        }

    if (!sipsproxy)
        {
        sipsproxy = proxyAddr.AllocLC();
        pops++;
        }

    if (sipsproxy->Length()) //there is an outbound proxy defined
        {
        (iProfile->IsSigCompEnabled())?
        proxy = SIPMessageBuilder::CreateRouteLC(*sipsproxy, ETrue):
        proxy = SIPMessageBuilder::CreateRouteLC(*sipsproxy);
        pops++;
        RStringF proxyTransport = TransportProtocol(proxy->SIPAddress().Uri8());
        if (proxyTransport.DesC().Length() > 0)
            {
            transport = proxyTransport.Copy();
            }
        }

    if (iProfile->Server(KSIPRegistrar).Length()) //there's a registrar defined
        {
        TUriParser8 parser;
        User::LeaveIfError(parser.Parse(iProfile->Server(KSIPRegistrar)));
        remoteUri = CUri8::NewLC(parser);
        pops++;
        if (!proxy)
            {
            RStringF registrarTransport = TransportProtocol(*remoteUri);
            if (registrarTransport.DesC().Length() > 0)
                {
                transport = registrarTransport.Copy();
                }
            }
        }

    TBool sigcomp = iProfile->IsSigCompEnabled();

    const TDesC8* user = NULL;
    User::LeaveIfError(
        iProfile->ExtensionParameter(KSIPContactHeaderUser,user));

    CSIPContactHeader* contact =
        SIPMessageBuilder::CreateContactLC(*user, KSIPIetfExpiresValue,
                                           iProfile->ContactHeaderParams(),
                                           transport, sigcomp);
    pops++;

    if (IsAddressSIPSURIL(iProfile->AOR()))
        {
        CUri8* contactUriClone =
            CUri8::NewLC(contact->SIPAddress()->Uri8().Uri());
        contactUriClone->SetComponentL(
            SIPStrings::StringF(SipStrConsts::ESips).DesC(),EUriScheme);
        contactUriClone->SetComponentL(*user,EUriUserinfo);
        contact->SIPAddress()->SetUri8L(contactUriClone);
        CleanupStack::Pop(contactUriClone);
        }

    iRegistration = CSIPRegistrationBinding::NewL(iConnection, to, contact,
                                                  refresh, proxy, remoteUri);
    CleanupStack::Pop(pops);
    delete sipsproxy;
    CleanupStack::PopAndDestroy(1); // transport
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileContext::CreateMsgElementsLC()
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
CSIPMessageElements* CSIPIetfProfileContext::CreateMsgElementsLC()
    {
    ASSERT(iProfile);

    CSIPMessageElements* elements = CSIPMessageElements::NewLC();

    RPointerArray<CSIPHeaderBase> headers;
    CSIPHeaderBase::PushLC(&headers);
    if (SetTlsToSecurityClientL())
        {
        CSIPSecurityClientHeader* sclient =
            CSIPSecurityClientHeader::NewLC(KSIPTls);
        headers.AppendL(sclient);
        CleanupStack::Pop(sclient);
        }

    if (iProfile->IsSecurityNegotiationEnabled())
        {
        CSIPSecurityClientHeader* sclient =
            CSIPSecurityClientHeader::NewLC(KSIPdigest);
        headers.AppendL(sclient);
        CleanupStack::Pop(sclient);
        }

    TInt sipHeaderCount = iProfile->SIPHeaders().MdcaCount();
    for (TInt i=0; i < sipHeaderCount; i++)
        {
        TPtrC8 headerDes(iProfile->SIPHeaders().MdcaPoint(i));
        CSIPHeaderBase* header = SIPMessageBuilder::CreateHeaderLC(headerDes);
        headers.AppendL(header);
        CleanupStack::Pop(header);
        }

    elements->SetUserHeadersL(headers); // // An empty array is also allowed
    CleanupStack::Pop(1); // headers

    return elements;
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileContext::CreateDeRegisterElementsL()
// -----------------------------------------------------------------------------
//
CSIPMessageElements* CSIPIetfProfileContext::CreateDeRegisterElementsL()
    {
    return NULL;
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileContext::UpdateContactHeaderParamsL
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
void CSIPIetfProfileContext::UpdateContactHeaderParamsL(
    CSIPConcreteProfile& aNewProfile)
    {
    CSIPContactHeader& contact = Registration()->ContactHeader();
    TPtrC8 paramName;
    TPtrC8 paramValue;

    for (TInt i = Profile()->ContactHeaderParams().MdcaCount()-1;i >= 0; i--)
        {
        TPtrC8 param(Profile()->ContactHeaderParams().MdcaPoint(i));
        SIPMessageBuilder::ParseParamL(param,paramName,paramValue);
        RStringF name = SIPStrings::Pool().OpenFStringL(paramName);
        CleanupClosePushL(name);
        contact.DeleteParam(name);
        CleanupStack::PopAndDestroy(1); // name
        }

    for (TInt i = 0; &(aNewProfile.ContactHeaderParams()) &&
                     (i < aNewProfile.ContactHeaderParams().MdcaCount()); i++)
        {
        TPtrC8 param(aNewProfile.ContactHeaderParams().MdcaPoint(i));
        TBool hasValue =
            SIPMessageBuilder::ParseParamL(param,paramName,paramValue);
        RStringF name = SIPStrings::Pool().OpenFStringL(paramName);
        CleanupClosePushL(name);
        if (hasValue)
            {
            RStringF value = SIPStrings::Pool().OpenFStringL(paramValue);
            CleanupClosePushL(value);
            contact.SetParamL(name,value);
            CleanupStack::PopAndDestroy(1); // value
            }
        else
            {
            contact.SetParamL(name);
            }
        CleanupStack::PopAndDestroy(1); // name
        }

    CSIPMessageElements* elements = CreateMsgElementsForUpdateLC(aNewProfile);
    SetTransaction(Registration()->UpdateL(KSIPIetfExpiresValue, elements));
    CleanupStack::Pop(elements);
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileContext::SetRegisteredAORsL()
// -----------------------------------------------------------------------------
//
void CSIPIetfProfileContext::SetRegisteredAORsL()
    {
    if (iProfile)
        {
        CDesC8ArrayFlat* array = new(ELeave)CDesC8ArrayFlat(1);
        CleanupStack::PushL(array);
        array->AppendL(iProfile->AOR());
        iProfile->SetRegisteredAORsL(*array);
        CleanupStack::PopAndDestroy(array);
        if (iRegistration && iRegistration->RegisteredContact())
            {
            HBufC8* contact =
                iRegistration->RegisteredContact()->ToTextValueLC();
            iProfile->SetExtensionParameterL(KSIPRegisteredContact,*contact);
            CleanupStack::PopAndDestroy(contact);
            }
        }
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileContext::ResolveProxyL
// -----------------------------------------------------------------------------
//
void CSIPIetfProfileContext::ResolveProxyL()
    {
    iConnectionContext.ResolveL();
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileContext::CancelProxyResolving
// -----------------------------------------------------------------------------
//
void CSIPIetfProfileContext::CancelProxyResolving()
    {
    iConnectionContext.CleanProxyResolving();
    }

// -----------------------------------------------------------------------------

// -----------------------------------------------------------------------------
// CSIPIetfProfileContext::RetryAfterTimer
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
TBool CSIPIetfProfileContext::RetryAfterTimer()
    {
    return ( iRetryCounterSum == 0 && iRetryTimerUse );
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileContext::RetryRegister
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
TBool CSIPIetfProfileContext::RetryRegister(
    CSIPClientTransaction* /*aTransaction*/,
    TInt aError )
    {
    PROFILE_DEBUG4("CSIPIetfProfileContext::RetryRegister",
                   aError, iRetryCounterSum)

    TBool retry = EFalse;

    if (iProfile &&
        AgentObserver().ProceedRegistration(*iProfile) &&
        (CurrentState() == MSIPProfileContext::ERegistrationInProgress ||
         CurrentState() == MSIPProfileContext::ERegistered) &&
        (aError == KErrSIPOutboundProxyNotResponding ||
         aError == KErrSIPResolvingFailure ||
         aError == KErrTimedOut ||
         aError == KErrSIPTransportFailure &&
         iConnection.State() != CSIPConnection::ESuspended))
        {
        if ( iRetryCounterSum + 1 < KMaxRetryForOneAddress &&
             iRetryCounter < KMaxRetryForOneAddress )
            {
            retry = ETrue;
            }
        else
            {
            if (iRetryCounterSum < KMaxRetryForOneAddress &&
                iRetryCounter + 1 >= KMaxRetryForOneAddress ||
                iRetryCounter >=  KMaxRetryForOneAddress)
                {
                iRetryCounter = 0;
                retry = RetryPossible(aError);
                }
            else
                {
                retry = ETrue;
                }
            }
        iRetryTimerUse = retry;
        SetRetryPossible(retry);
        }
    else
        {
        iRetryCounter = 0;
        iRetryCounterSum = 0;
        iRetryTimerUse = EFalse;
        }
    if (!retry)
        {
        iRetryCounter = 0;
        iRetryCounterSum = 0;
        }
    return retry;
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileContext::ShouldRetryRegistration
// -----------------------------------------------------------------------------
//
TBool CSIPIetfProfileContext::ShouldRetryRegistration( TInt aError )
    {
    return (aError == K503ServiceUnavailable ||
            aError == KErrSIPOutboundProxyNotResponding ||
            aError == KErrTimedOut ||
            ((aError == KErrSIPResolvingFailure ||
              aError == KErrSIPTransportFailure) &&
             iConnection.State() != CSIPConnection::ESuspended));
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileContext::InitializeRetryTimerValue
// -----------------------------------------------------------------------------
//
void CSIPIetfProfileContext::InitializeRetryTimerValue()
    {
    iRetryTimerUse = 0;
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileContext::ConnectionStateChangedImpl
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
void CSIPIetfProfileContext::ConnectionStateChangedImpl(
    CSIPConnection::TState /*aState*/)
    {
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileContext::DeregisterL
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
void CSIPIetfProfileContext::DeregisterL()
    {
    PROFILE_DEBUG4("CSIPIetfProfileContext::DeregisterL", iProfileId\
        , iCurrentState->Name())
    iCurrentState->DeregisterL(*this);
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileContext::UpdateL
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
void CSIPIetfProfileContext::UpdateL(
    CSIPConcreteProfile& aNewProfile)
    {
    PROFILE_DEBUG4("CSIPIetfProfileContext::UpdateL", iProfileId\
        , iCurrentState->Name())
    iCurrentState->UpdateL(*this, aNewProfile);
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileContext::IncomingResponse()
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
void CSIPIetfProfileContext::IncomingResponse(
    CSIPClientTransaction& aTransaction,
    CSIPRegistrationBinding& aRegistration,
    TBool& aHandled)
    {
    if (iClientTx && iRegistration &&
        aTransaction==*iClientTx && aRegistration==*iRegistration)
        {
        PROFILE_DEBUG3("SIPIetfProfileContext::IncomingResponse", iProfileId)
        aHandled = ETrue;
        const CSIPResponseElements* response = aTransaction.ResponseElements();
        if (response)
            {
            TUint responseCode = response->StatusCode();
            if (responseCode >= K300MultipleChoices)
                {
                PROFILE_DEBUG1("IETFProfileContext: registration failed")
                RetryPossible(responseCode);
                }
            else
                {
                if (responseCode >= K200Ok)
                    {
                    PROFILE_DEBUG1("IETFProfileContext: registration complete")
                    iRetryCounter = 0;
                    iRetryCounterSum = 0;
                    Received2XXRegisterResponse();
                    }
                }
            }
        iCurrentState->ResponseReceived(*this, aTransaction);
        }
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileContext::RandomPercent()
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
TUint CSIPIetfProfileContext::RandomPercent()
    {
    const TInt rand = Math::Rand(iRandomSeed);
    TInt result = 0;
    result = KMaxRandomLimit + (rand%KMaxRandomLimit);
    return result;
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileContext::DelayTime()
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
TUint CSIPIetfProfileContext::DelayTime()
    {
    PROFILE_DEBUG1("CSIPIetfProfileContext::DelayTime")
    TReal res;
    iRetryCounter++;
    iRetryCounterSum++;
    Math::Pow(res,KWaitTimeCoefficient,iRetryCounter);
    TUint respond = res;
    TUint waitTime = KBaseTimeInSec*respond;
    if (waitTime > 1800)
        {
        waitTime = 1800;
        }
    return ((waitTime*RandomPercent())/KRandomDivider);
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileContext::RetryTimerInUse()
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
TBool CSIPIetfProfileContext::RetryTimerInUse()
    {
    return iRetryTimerUse;
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileContext::IsAddressSIPSURIL()
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
TBool CSIPIetfProfileContext::IsAddressSIPSURIL(const TDesC8& aValue) const
    {
    __ASSERT_ALWAYS (aValue.Length() > 0, User::Leave(KErrArgument));
    TUriParser8 uriParser;
    User::LeaveIfError(uriParser.Parse(aValue));
    TPtrC8 sips(SIPStrings::StringF(SipStrConsts::ESips).DesC());
    return (uriParser.Extract(EUriScheme).CompareF(sips) == 0);
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileContext::SetAddressToSIPSURIL()
// -----------------------------------------------------------------------------
//
HBufC8* CSIPIetfProfileContext::SetAddressToSIPSURIL(const TDesC8& aValue)
    {
    TUriParser8 uriParser;
    User::LeaveIfError(uriParser.Parse(aValue));
    CUri8* uri = CUri8::NewLC(uriParser);
    uri->SetComponentL(
        SIPStrings::StringF(SipStrConsts::ESips).DesC(),EUriScheme);
    HBufC8* value = uri->Uri().UriDes().AllocL();
    CleanupStack::PopAndDestroy(uri);
    return value;
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileContext::SetTlsToSecurityClientL()
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
TBool CSIPIetfProfileContext::SetTlsToSecurityClientL()
    {
    TBool tlsSet = EFalse;
    if(!IsAddressSIPSURIL(iProfile->AOR()) &&
       iProfile->IsSecurityNegotiationEnabled())
        {
        const TDesC8& proxyAddr = ProxyAddressL();
        if (proxyAddr.Length() > 0)
            {
            if(IsConfiguredOutboundProxySIPURIL(proxyAddr)||
               IsDynamicNumericIPAddress(proxyAddr))
                {
                tlsSet = ETrue;
                }
            }
        }
    return tlsSet;
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileContext::IsDynamicNumericIPAddress()
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
TBool CSIPIetfProfileContext::IsDynamicNumericIPAddress( const TDesC8& aValue )
    {
    return ( IsProxyResolvingEnabled() &&
         !( UriUtils::HostType( aValue ) == UriUtils::ETextHost ) );
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileContext::IsConfiguredOutboundProxySIPURIL()
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
TBool CSIPIetfProfileContext::IsConfiguredOutboundProxySIPURIL( const TDesC8& aValue )
    {
    return ( !IsProxyResolvingEnabled() && !IsAddressSIPSURIL(aValue) );
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileContext::CreateMsgElementsForUpdateLC
// add SIP headers to REGISTER request
// -----------------------------------------------------------------------------
//
CSIPMessageElements* CSIPIetfProfileContext::CreateMsgElementsForUpdateLC(
    CSIPConcreteProfile& aProfile)
    {
    CSIPMessageElements* elements = CSIPMessageElements::NewLC();

    RPointerArray<CSIPHeaderBase> headers;
    CSIPHeaderBase::PushLC(&headers);

    TInt sipHeaderCount = aProfile.SIPHeaders().MdcaCount();
    for (TInt i=0; i < sipHeaderCount; i++)
        {
        TPtrC8 headerDes(aProfile.SIPHeaders().MdcaPoint(i));
        CSIPHeaderBase* header = SIPMessageBuilder::CreateHeaderLC(headerDes);
        headers.AppendL(header);
        CleanupStack::Pop(header);
        }

    elements->SetUserHeadersL(headers); // An empty array is also allowed
    CleanupStack::Pop(1); // headers

    return elements;
    }

// -----------------------------------------------------------------------------
// CSIPIetfProfileContext::TransportProtocol
// -----------------------------------------------------------------------------
//
RStringF CSIPIetfProfileContext::TransportProtocol(const CUri8& aUri) const
    {
    RStringF transport(SIPStrings::StringF(SipStrConsts::EEmpty));
    if (aUri.Uri().Extract(EUriPath).FindF(KTransportUdpParam) >= 0)
        {
        transport = SIPStrings::StringF(SipStrConsts::EUdp);
        }
    if (aUri.Uri().Extract(EUriPath).FindF(KTransportTcpParam) >= 0)
        {
        transport = SIPStrings::StringF(SipStrConsts::ETcp);
        }
    return transport;
    }

Sipietfconnectioncontext.cpp

//Sipietfconnectioncontext.cpp


// INCLUDE FILES

#include    "sipietfconnectioncontext.h"
#include    "sipmessageelements.h"
#include    "sipregistrationbinding.h"
#include    "sipconnection.h"
#include    "sipclienttransaction.h"
#include    "siprefresh.h"
#include    "sipietfprofilecontext.h"
#include    "sipprofileagent.h"
#include    "sipconcreteprofile.h"
#include    "SipProfileLog.h"
#include    "CSIPProxyResolver.h"
#include    "siperr.h"
#include    "sipresponseelements.h"


// ============================ MEMBER FUNCTIONS ===============================

// -----------------------------------------------------------------------------
// CSIPIetfConnectionContext::CSIPIetfConnectionContext
// C++ default constructor can NOT contain any code, that
// might leave.
// -----------------------------------------------------------------------------
//
CSIPIetfConnectionContext::CSIPIetfConnectionContext()
    {
    }

// -----------------------------------------------------------------------------
// CSIPIetfConnectionContext::~CSIPIetfConnectionContext
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
CSIPIetfConnectionContext::~CSIPIetfConnectionContext()
    {
    iContexts.ResetAndDestroy();

    delete iProxyResolver;
    delete iConnection;

    }

// -----------------------------------------------------------------------------
// CSIPIetfConnectionContext::NewLC
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
CSIPIetfConnectionContext* CSIPIetfConnectionContext::NewLC()
    {
    CSIPIetfConnectionContext* self =
        new (ELeave) CSIPIetfConnectionContext();
    CleanupStack::PushL(self);
    self->ConstructL();
    return self;
    }

// -----------------------------------------------------------------------------
// CSIPIetfConnectionContext::NewL
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
CSIPIetfConnectionContext* CSIPIetfConnectionContext::NewL()
    {
    CSIPIetfConnectionContext* self =
        CSIPIetfConnectionContext::NewLC();
    CleanupStack::Pop();
    return self;
    }

// -----------------------------------------------------------------------------
// CSIPIetfConnectionContext::SetConnection
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
void CSIPIetfConnectionContext::SetConnection(CSIPConnection* aConnection)
    {
    iConnection = aConnection;
    }

// -----------------------------------------------------------------------------
// CSIPIetfConnectionContext::Connection
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
CSIPConnection* CSIPIetfConnectionContext::Connection()
    {
    return iConnection;
    }

// -----------------------------------------------------------------------------
// CSIPIetfConnectionContext::IsIdle
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
TBool CSIPIetfConnectionContext::IsIdle() const
    {
    return (iContexts.Count()==0);
    }

// -----------------------------------------------------------------------------
// CSIPIetfConnectionContext::FindContext
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
CSIPIetfProfileContext*
    CSIPIetfConnectionContext::FindContext(TUint32 aProfileId)
    {
    CSIPIetfProfileContext* context = 0;
    TBool found = EFalse;
    for (TInt i=0; i<iContexts.Count() && !found; i++)
        {
        if (iContexts[i]->Profile() && iContexts[i]->Profile()->Id() == aProfileId)
            {
            context = iContexts[i];
            found = ETrue;
            }
        }
    return context;
    }

// -----------------------------------------------------------------------------
// CSIPIetfConnectionContext::AddProfileContextL
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
void
CSIPIetfConnectionContext::AddProfileContextL(CSIPIetfProfileContext* aContext)
    {
    __ASSERT_DEBUG(aContext->Connection().IapId()==iConnection->IapId(),
                                                             User::Invariant());
    User::LeaveIfError(iContexts.Append(aContext));
    }

// -----------------------------------------------------------------------------
// CSIPIetfConnectionContext::CleanIdleContexts
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
void CSIPIetfConnectionContext::CleanIdleContexts()
    {
    PROFILE_DEBUG1("CSIPIetfConnectionContext::CleanIdleContexts")
    CSIPIetfProfileContext* context = 0;
    for (TInt i= iContexts.Count()-1; i >= 0;i--)
        {
        PROFILE_DEBUG3("CSIPIetfConnectionContext::CleanIdleContexts iContexts.Count() > 0 i=",i)
        if (iContexts[i]->CurrentState() == MSIPProfileContext::EInit &&
            iContexts[i]->IsIdle())
            {
            PROFILE_DEBUG1("CSIPIetfConnectionContext::CleanIdleContexts, ProfileContext removed")
            context = iContexts[i];
            iContexts.Remove(i);
            delete context;
            context = NULL;
            }
        }
    iContexts.Compress();
    }

// -----------------------------------------------------------------------------
// CSIPIetfConnectionContext::SetCredentials
// -----------------------------------------------------------------------------
//
TBool CSIPIetfConnectionContext::SetCredentials(
    const CSIPClientTransaction& aTransaction,
    CSIPHttpDigest& aDigest)
    {
    TBool found = EFalse;
    for (TInt i=0; i < iContexts.Count() && !found; i++)
        {
        found = iContexts[i]->SetCredentials(aTransaction,aDigest);
        }
    return found;
    }

// -----------------------------------------------------------------------------
// CSIPIetfConnectionContext::SetCredentials
// -----------------------------------------------------------------------------
//
TBool CSIPIetfConnectionContext::SetCredentials(
    const CSIPRefresh& aRefresh,
    CSIPHttpDigest& aDigest)
    {
    TBool found = EFalse;
    for (TInt i=0; i < iContexts.Count() && !found; i++)
        {
        found = iContexts[i]->SetCredentials(aRefresh,aDigest);
        }
    return found;
    }

// -----------------------------------------------------------------------------
// CSIPIetfConnectionContext::ResolveL
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
void CSIPIetfConnectionContext::ResolveL()
    {
    CleanProxyResolving();
    ResolveProxyL();
    }

// -----------------------------------------------------------------------------
// CSIPIetfConnectionContext::ResolveProxyL
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
void CSIPIetfConnectionContext::ResolveProxyL()
    {
    PROFILE_DEBUG1("CSIPIetfConnectionContext::ResolveProxyL")
    if (iProxyResolveRequestId == 0)
        {
        if (iProxyResolver == 0)
            {
            iProxyResolver = CSIPProxyResolver::NewL();
            }

        if (iConnection->State() == CSIPConnection::EActive)
            {
            PROFILE_DEBUG1("CSIPIetfConnectionContext::ResolveProxyL, resolving")
            iProxyResolver->ResolveProxyL(
                iProxyResolveRequestId, iConnection->IapId(), *this);
            }
        }
    PROFILE_DEBUG1("CSIPIetfConnectionContext::ResolveProxyL, exit")
    }

// -----------------------------------------------------------------------------
// CSIPIetfConnectionContext::CleanProxyResolving
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
void CSIPIetfConnectionContext::CleanProxyResolving()
    {
    PROFILE_DEBUG1("CSIPIetfConnectionContext::CleanProxyResolving")
    if(iProxyResolveRequestId)
        {
        iProxyResolver->Cancel(iProxyResolveRequestId);
        iProxyResolveRequestId = 0;
        }
    }

// -----------------------------------------------------------------------------
// CSIPIetfConnectionContext::ConnectionStateChanged
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
void CSIPIetfConnectionContext::ConnectionStateChanged (
    CSIPConnection::TState aState)
    {
    PROFILE_DEBUG1("CSIPIetfConnectionContext::ConnectionStateChanged")
    if (aState == CSIPConnection::EActive)
        {
        PROFILE_DEBUG1("ConnectionStateChanged, Active")
        }
    else if (aState == CSIPConnection::EInactive)
        {
        PROFILE_DEBUG1("ConnectionStateChanged, Inactive")
        CleanProxyResolving();
        }
    else
        {
        PROFILE_DEBUG3("ConnectionStateChanged, state: ", aState)
        //makes pclint happy
        }

    CleanIdleContexts();

    for (TInt i=0; i<iContexts.Count(); i++)
        {
        iContexts[i]->ConnectionStateChanged(aState);
        }
    }

// -----------------------------------------------------------------------------
// CSIPIetfConnectionContext::IncomingResponse
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
void CSIPIetfConnectionContext::IncomingResponse (
    CSIPClientTransaction& aTransaction,
    CSIPRegistrationBinding& aRegistration)
    {
    PROFILE_DEBUG1("CSIPIetfConnectionContext::IncomingResponse")
    TBool handled = EFalse;

    CleanIdleContexts();

    for (TInt i=0; i<iContexts.Count() && !handled; i++)
        {
        const CSIPResponseElements* response = aTransaction.ResponseElements();
        if (response)
            {
            TBool isErrorResponse = (response->StatusCode() >= 300);
            TInt contextCountBefore = iContexts.Count();

            iContexts[i]->IncomingResponse(aTransaction, aRegistration, handled);

            TBool contextRemoved = (iContexts.Count() != contextCountBefore);
            if (handled && !contextRemoved && isErrorResponse)
                {
                iContexts[i]->RetryRegistration();
                }
            }
        }
    }

// -----------------------------------------------------------------------------
// CSIPIetfConnectionContext::ErrorOccured
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
void CSIPIetfConnectionContext::ErrorOccured (
    TInt aError,
    CSIPClientTransaction& aTransaction,
    CSIPRegistrationBinding& aRegistration)
    {
    PROFILE_DEBUG3("CSIPIetfConnectionContext::ErrorOccured", aError)
    TBool handled = EFalse;

    CleanIdleContexts();

    for (TInt i=0; i<iContexts.Count() && !handled; i++)
        {
        iContexts[i]->ErrorOccured(aError, aTransaction, aRegistration, handled);
        if (handled && (iProxyResolveRequestId == 0))
            {
            if ( iContexts[i]->RetryTimerInUse() )
                {
                iContexts[i]->RetryDeltaTimer( iContexts[i]->DelayTime() );
                }
            else
                {
                iContexts[i]->RetryRegistration();
                }
            }
        }
    }

// -----------------------------------------------------------------------------
// CSIPIetfConnectionContext::ErrorOccured
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
void CSIPIetfConnectionContext::ErrorOccured (
    TInt aError,
    CSIPRegistrationBinding& aRegistration)
    {
    PROFILE_DEBUG3("CSIPIetfConnectionContext::ErrorOccured", aError)
    TBool handled = EFalse;

    CleanIdleContexts();

    for (TInt i=0; i<iContexts.Count() && !handled; i++)
        {
        if (aError == KErrSIPTerminatedWithResponse)
            {
            const CSIPClientTransaction* transaction =
            iContexts[i]->Registration()->SIPRefresh()->SIPTransaction();
            if (transaction)
                {
                aError = transaction->ResponseElements()->StatusCode();
                iContexts[i]->CSIPProfileContextBase::ErrorOccured(aError,
                                   const_cast<CSIPClientTransaction&> (*transaction),
                                   aRegistration,
                                   handled);
                }
            else
                {
                iContexts[i]->ErrorOccured(aError, aRegistration, handled);
                }
            }
        else
            {
            iContexts[i]->ErrorOccured(aError, aRegistration, handled);
            }

        if (handled && (iProxyResolveRequestId == 0))
            {
            if ( iContexts[i]->RetryTimerInUse() )
                {
                iContexts[i]->RetryDeltaTimer( iContexts[i]->DelayTime() );
                }
            else
                {
                iContexts[i]->RetryRegistration();
                }
            }
        }
    }

// -----------------------------------------------------------------------------
// CSIPIetfConnectionContext::ProxyResolvingRequestComplete
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
void CSIPIetfConnectionContext::ProxyResolvingRequestComplete (
    TUint /*aRequestId*/, MDesC8Array* aProxies)
    {
    PROFILE_DEBUG1("CSIPIetfConnectionContext::ProxyResolvingRequestComplete")
    iProxyResolveRequestId = 0;

    CleanIdleContexts();

    TInt err = KErrNone;
    for (TInt i=0; i<iContexts.Count(); i++)
        {
        TRAP(err, iContexts[i]->ProxyResolvingRequestCompleteL(*aProxies));
        if (err != KErrNone)
            {
            iContexts[i]->HandleProxyResolvingError(err);
            }
        }
    delete aProxies;
    }

// -----------------------------------------------------------------------------
// CSIPIetfConnectionContext::ProxyResolvingRequestFailed
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
void CSIPIetfConnectionContext::ProxyResolvingRequestFailed (
    TUint /*aRequestId*/, TInt aError)
    {
    PROFILE_DEBUG3("CSIPIetfConnectionContext::\
        ProxyResolvingRequestFailed", aError)
    CleanIdleContexts();
    iProxyResolveRequestId = 0;

    for (TInt i=0; i<iContexts.Count(); i++)
        {
        iContexts[i]->ProxyResolvingRequestFailed(aError);
        }
    }

// -----------------------------------------------------------------------------
// CSIPIetfConnectionContext::ConstructL
// Symbian 2nd phase constructor can leave.
// -----------------------------------------------------------------------------
//
void CSIPIetfConnectionContext::ConstructL()
    {
    }

// -----------------------------------------------------------------------------
// CSIPIetfConnectionContext::ErrorOccured
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
void CSIPIetfConnectionContext::ErrorOccured (
    TInt /*aError*/,
    CSIPTransactionBase& /*aTransaction*/)
    {
    }

// -----------------------------------------------------------------------------
// CSIPIetfConnectionContext::IncomingRequest
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
void CSIPIetfConnectionContext::IncomingRequest (
    CSIPServerTransaction* /*aTransaction*/)
    {
    }

// -----------------------------------------------------------------------------
// CSIPIetfConnectionContext::IncomingRequest
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
void CSIPIetfConnectionContext::IncomingRequest (
    CSIPServerTransaction* /*aTransaction*/,
    CSIPDialog& /*aDialog*/)
    {
    }

// -----------------------------------------------------------------------------
// CSIPIetfConnectionContext::IncomingResponse
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
void CSIPIetfConnectionContext::IncomingResponse (
    CSIPClientTransaction& /*aTransaction*/)
    {
    }

// -----------------------------------------------------------------------------
// CSIPIetfConnectionContext::IncomingResponse
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
void CSIPIetfConnectionContext::IncomingResponse (
    CSIPClientTransaction& /*aTransaction*/,
    CSIPDialogAssocBase& /*aDialogAssoc*/)
    {
    }

// -----------------------------------------------------------------------------
// CSIPIetfConnectionContext::IncomingResponse
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
void CSIPIetfConnectionContext::IncomingResponse (
    CSIPClientTransaction& /*aTransaction*/,
    CSIPInviteDialogAssoc* /*aDialogAssoc*/)
    {
    }


// -----------------------------------------------------------------------------
// CSIPIetfConnectionContext::ErrorOccured
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
void CSIPIetfConnectionContext::ErrorOccured (
    TInt /*aError*/,
    CSIPDialogAssocBase& /*aDialogAssoc*/)
    {
    }
// -----------------------------------------------------------------------------
// CSIPIetfConnectionContext::ErrorOccured
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
void CSIPIetfConnectionContext::ErrorOccured (
    TInt /*aError*/,
    CSIPTransactionBase& /*aTransaction*/,
    CSIPDialogAssocBase& /*aDialogAssoc*/)
    {
    }

// -----------------------------------------------------------------------------
// CSIPIetfConnectionContext::ErrorOccured
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
void CSIPIetfConnectionContext::ErrorOccured (
    TInt /*aError*/,
    CSIPRefresh& /*aRefresh*/)
    {
    }

// -----------------------------------------------------------------------------
// CSIPIetfConnectionContext::InviteCompleted
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
void CSIPIetfConnectionContext::InviteCompleted (
    CSIPClientTransaction& /*aTransaction*/)
    {
    }

// -----------------------------------------------------------------------------
// CSIPIetfConnectionContext::InviteCanceled
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
void CSIPIetfConnectionContext::InviteCanceled (CSIPServerTransaction& /*aTransaction*/)
    {
    }

// -----------------------------------------------------------------------------
// CSIPIetfConnectionContext::AddIntoQueue
// (other items were commented in a header).
// -----------------------------------------------------------------------------
//
TBool CSIPIetfConnectionContext::AddIntoQueue( const TDesC8& aValue )
    {
    PROFILE_DEBUG1("CSIPIetfConnectionContext::AddIntoQue")
    TBool result = EFalse;
    for (TInt i=0; i<iContexts.Count() && !result; i++)
        {
        result = iContexts[i]->AddIntoQueue( aValue );
        }
    return result;
    }

implementationproxy.cpp

//implementationproxy.cpp

#include "sipietfprofileagent.h"
#include <implementationproxy.h>

// Disabled PC-Lint warning for "suspicious typecast" caused by Symbian's
// ECom declarations
/*lint -e611 */


const TImplementationProxy ImplementationTable[] =
    {
    //Implementation UID and pointer to instantiation method
    IMPLEMENTATION_PROXY_ENTRY( 0x101F413A, CSIPIetfProfileAgent::NewL )
    };

EXPORT_C const TImplementationProxy* ImplementationGroupProxy(TInt& aTableCount)
    {
    aTableCount = sizeof(ImplementationTable) / sizeof(TImplementationProxy);

    return ImplementationTable;
    }

101F4139.rss

// 101F4139.rss

#include "registryinfov2.rh"

RESOURCE REGISTRY_INFO theInfo
{
resource_format_version = RESOURCE_FORMAT_VERSION_2;
dll_uid = 0x101F4139;
interfaces =
    {
    INTERFACE_INFO
        {
        interface_uid = 0x101F4136;
        implementations =
            {
            IMPLEMENTATION_INFO
                {
                implementation_uid = 0x101F413A;
                version_no = 1;
                display_name = "standard IETF profile agent";
                default_data = "0_IETF";
                }
            };
        }
    };
}
